MX UTV is the new AiM dash logger specifically designed for the off-road world, in order to offer our best technology to those racers whom crave for running in absolute freedom.
MX UTV acquires and shows the following important information:
- data coming from your ECU
- transmission belt temperature, by using the infrared sensor included in the kit
GPS Data: speed, position, time of the day and, with a precision of 1/100 sec, the lap times, thanks to the powerful built-in GPS Module.

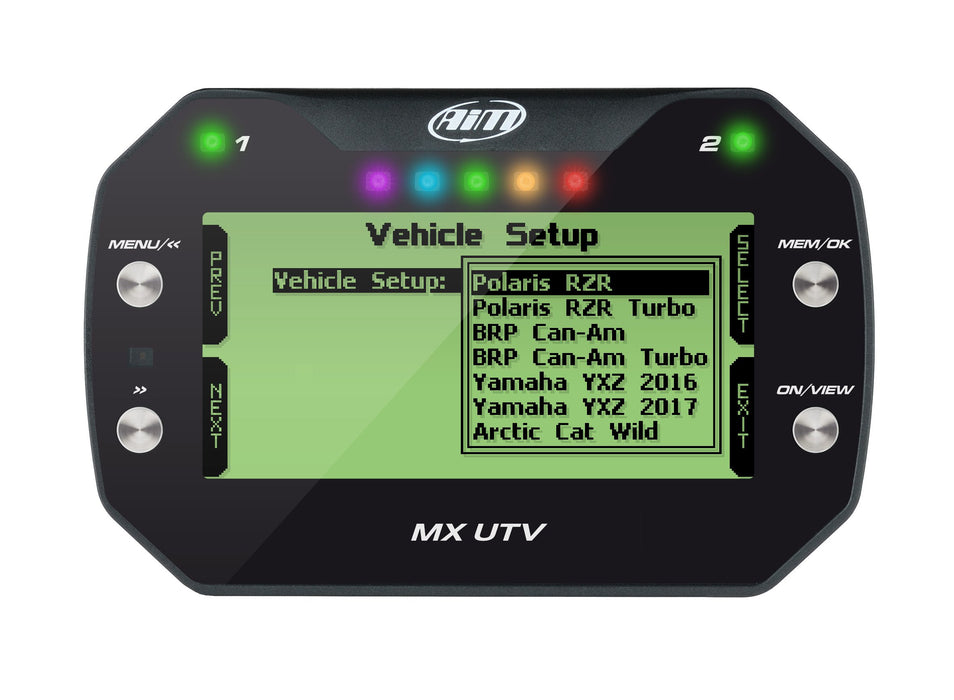

Polaris RZR Turbo Channels:
- Brake SW
- Fuel rate
- Boost Pressure
- Charge Air temp

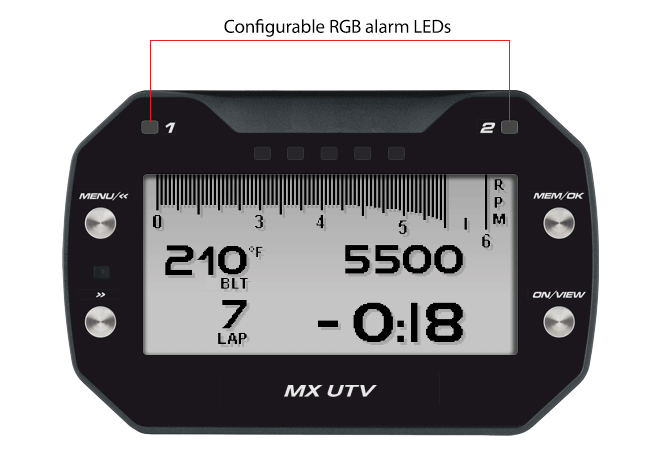

The transmission belt temperature is one of the main concern for UTV drivers. Thanks to the infrared temperature sensor, included in the kit, it is possible to constantly check the temperature, reading it directly on the display. Two RGB alarm LEDs will turn on when the temperature gets close to the critical level.
The top of the dash features 5 LEDs, that can be set up for 2 different functions: gear shift light or predictive lap time. In case you configure the LEDs for Gear Shift Lights, they will help you in choosing the best instant to shift gear. In case you configure the LEDs as Predictive Lap Time, they will give you a constant idea of how you are improving your lap time, every few feet.

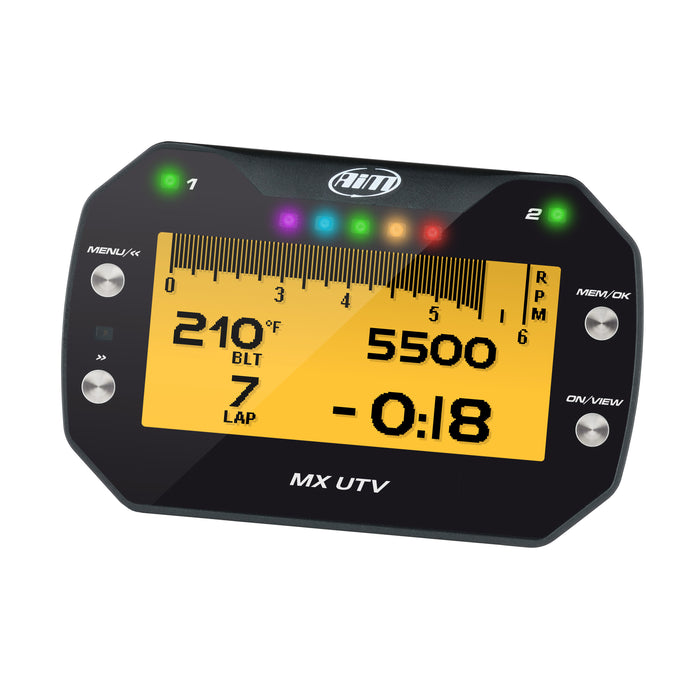

The wide LCD display has a freely configurable RGB backlight, which gives you the possibility to choose among eight different colors, and a light sensor that automatically switches on the backlight with low light conditions.
Thanks to the integrated GPS Module, MX UTV automatically recognizes the track you are racing on and calculates lap times and your position on the track with high precision. Besides, thanks to the auto-learning mode, MX UTV will anytime be able to add new tracks into its internal tracks database. All the acquired data, from the ECU, from the Belt Temp Sensor and from the GPS are stored into a huge 4 GB internal memory, that can log your data for several thousands of hours.
