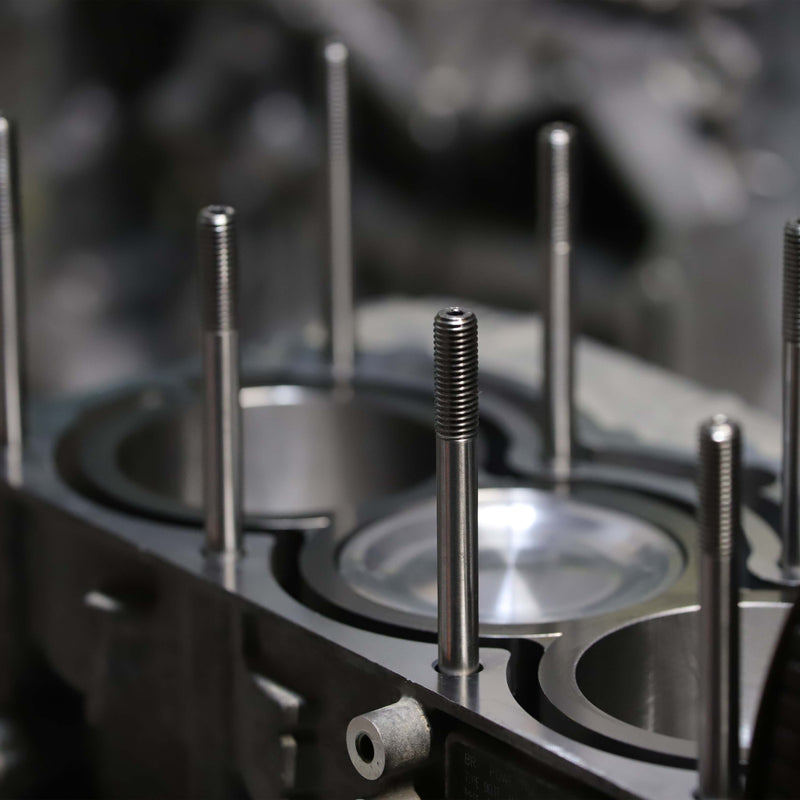

    WSRD Ultimate 9mm Head Stud Kit | Can-Am X3 & Ski-Doo (Rated to 550HP)

    by WSRD
    Original price $449.00 - Original price $449.00
    Original price
    $449.00
    $449.00 - $449.00
    Current price $449.00
    Availability:
    In stock

    The last head stud your machine may ever need! The WSRD Ultimate 9mm Head Stud Kit is a direct factory replacement for OEM Head Bolt that you will find in the WSRD V2 and V3 Long Block Packages!

    Made from ARP625+ Custom Age material and rated to 280,000 psi, ARP cylinder head studs not only offer superior clamp loads over cylinder head bolts, they provide proper alignment of the head and gasket with more accurate and consistent torque loading. Bolts will actually twist while torquing to proper spec, greatly reducing their ability to hold true.

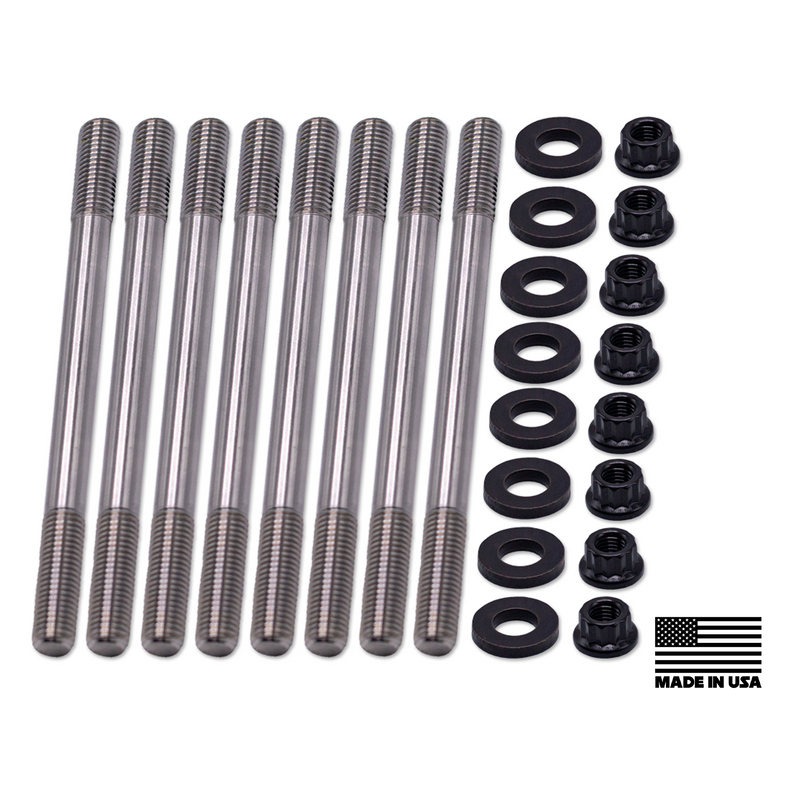

    • (8) WSRD x ARP Ultimate 625+ Head Stud
    • (8) WSRD EXCLUSIVE Head Stud Washer
    • (8) WSRD x ARP Head Stud Nut
    • (1) Pack of ARP Assembly Lube

    Please note knurled side of WSRD Head Washer installs face down against the cylinder head, NOT facing the head stud washer.
